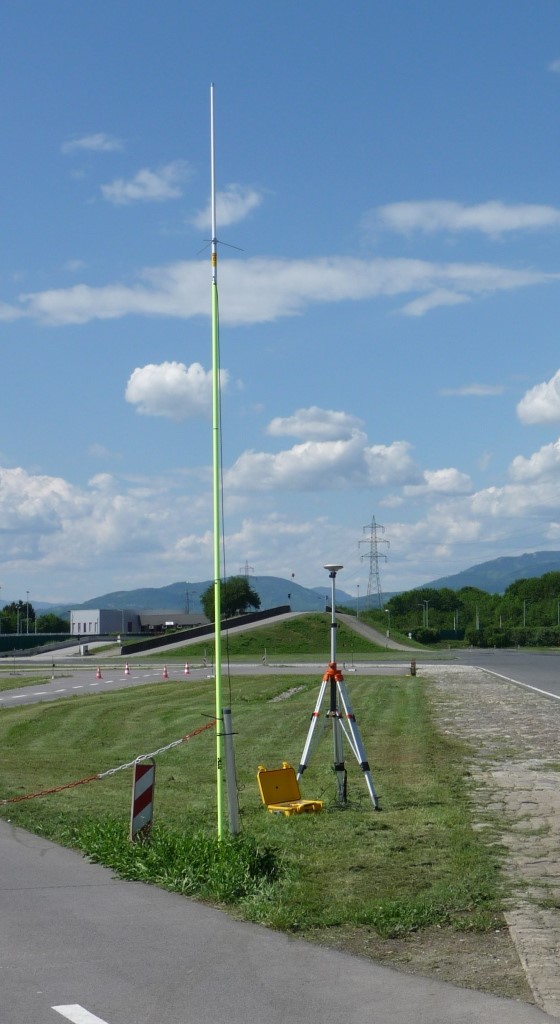

iREF-GNSS-BASIC: RTK GNSS Reference Station with GNSS antenna and VHF antenna mast

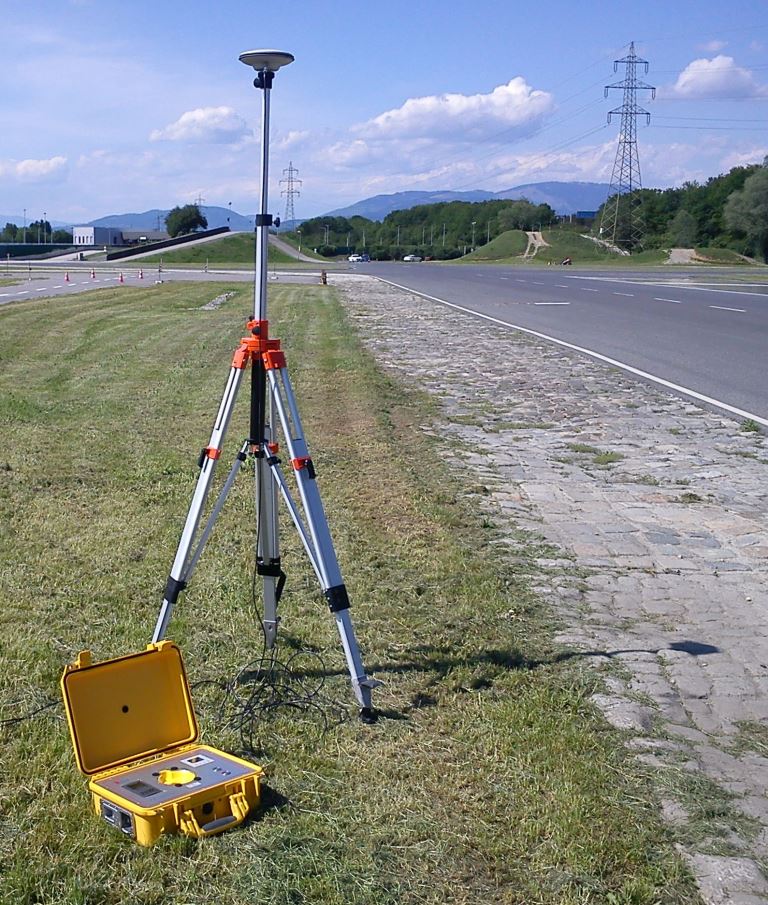

iREF-GNSS-BASIC with GNSS antenna on tripod
iREF-M200: Light-weight GNSS RTK Reference Station (with MIL grade protection)
iREF-GNSS-BASIC and iREF-GNSS-PRO: RTK GNSS Reference Station

iREF-GNSS-PRO, iREF-GNSS-BASIC, iREF-M200: GNSS RTK Reference Stations

Advanced RTK GNSS Reference Stations

The iREF-GNSS-BASIC is a RTK GPS reference station which comes in a highly ruggedized water-tight en­closure and provides an autonomous power pro­vi­sion, an advanced integrated GNSS engine, an integrated UHF or VHF radio mo­dem or NTRIP interface for communication to an unlimited amount of rovers and several interfaces like RS232, RS422 and USB.

The iREF-GNSS-BASIC is equipped with sturdy con­nectors and is designed for autono­mous opera­tion. Two high density hot-plugging bat­teries allow a long time op­eration including data transmission to mobile rovers via radio mo­dem on VHF or UHF band or via NTRIP. An LTE GSM modem can be connected via UART RS232 to support even a fast initial position survey via RTK correction data which mnight be distributed by a local commercial provider (in this case these correction data are only used a very short time once to acquire the true position of the just installed GNSS antenna of the iREF).

The batteries of the iREF-GNSS-BASIC can be charged with an external battery charger, which is included in the delivery.

The iREF-GNSS-BASIC can be supplied by the internal batteries or via external provided 10...28 V DC. As an option an external 100...240 V AC power supply is available.

Features are:

  • RTK GNSS reference station, up to 20 Hz data rate
  • L1L2 GPS, GLONASS, optionally GALILEO, BeiDou, L band (TerraStar), NTRIP corrections etc.
  • Data format: RTCA, RTCM etc.
  • Integrated radio modem. Sev­eral frequency ranges [VHF, UHF] and power classes [from 0.5 W to 5 W] available.
  • Autonomous operation over at least 8 hrs with one set of batteries [5 W modem], typically 15 hrs.
  • 10...28 V DC supply input; external AC power adapter as an option.
  • Water-tight ruggedized housing
  • iREF-GNSS-BASIC comes with a L1L2 GNSS an­tenna and a heavy aluminum tripod.
  • Plug&play with iMAR’s INS solu­tions

Options for data transmis­sion are UHF 433 MHz or VHF 160 MHz band, or iMAR's iDMN Dynamic Mesh Communication Network or any other NTRIP capable network.

To survey the position of the iREF-GNSS-BASIC, cor­rection data input obtained from TerraStar or AxioNet/SAPOS or similar or NTRIP is supported as an option.

The software iXCOM-CMD (under Windows and Linux) for the user's PC / laptop is included to configure the iREF and to perform a data download, e.g. to provide them for post-processing. It is the same software as also used to operate all iNAT, iTraceRT-MVT, iSULONA, iCOMBANA, iPRENA and iATTHEMO systems.



The iREF-GNSS-PRO is similar to the iREF-GNSS-BASIC, but it contains additionally the following features:

  • integrated WLAN for wireless access to iREF-GNSS-PRO for configuration and data download
  • integrated LTE GSM modem to access to the data of an external RTK correction data provider fur the usage of initial surveying of the GNSS antenna position within the desired coordinate system.
  • integrated battery charger
  • included power adapter for additional  100...240 V AC operation capability



The iREF-M200 is a very small, light-weight and robust GNSS reference station, which will be supplied by an external DC voltage (9...34 V DC, < 10 W, overvoltage and spike protection as well as EMI/EMC protection according to MIL standards). iDMN Dynamic Mesh Communication Network is supported, RTK correction data are provided via NTRIP.

Hint: Instead of the iDMN also any other IP based network can be connected via Ethernet to transmit the NTRIP data from the iREF-M200 to the rovers. The advantage of iMAR's iDMN Mesh Communication Network is very low latency and jitter.

The weight of iREF-M200 is less than 850 grams.

The Windows and LINUX based configu­ration software iXCOM-CMD (same software as used to operate the navgation systems of families iNAT, iTrcaeRT-MVT, iPRENA, iCOMBANA, iSULONA, iATTHEMO) is included to configure the iREF-M200, the iREF-GNSS-BASIC and iREF-GNSS-PRO and the communication network iDMN.



Further information:

Datasheet: iREF-GNSS-PRO

Datasheet: iREF-GNSS-BASIC

Datasheet: iREF-M200
