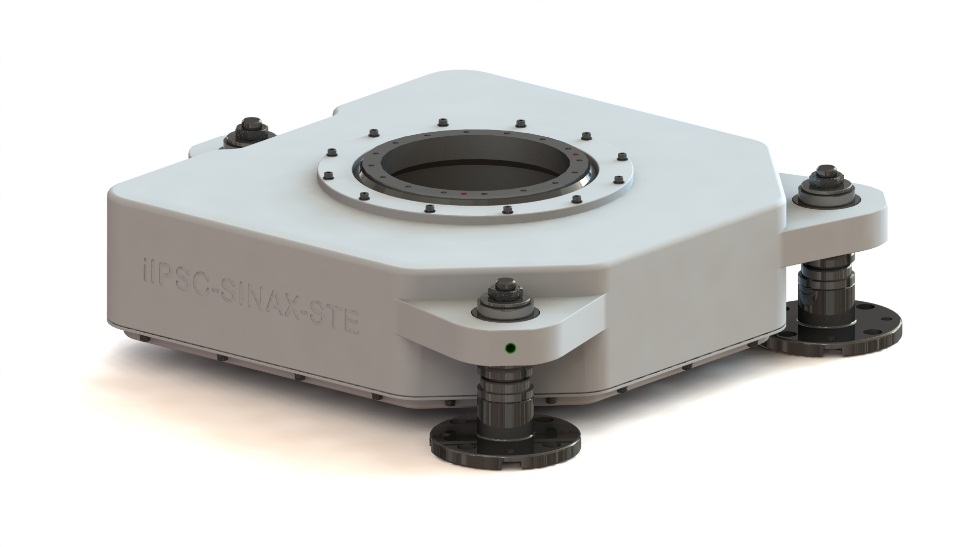

iIPSC-SINAX: Azimuth Gyro Stabilized Naval Platform for 300 kg Payload

Gyro Stabilized Signle Axis Platform

The iIPSC-SINAX is a single axis gyro stabilized system including optional true north alignment (by gyro compassing or by dual-antenna GNSS support) and joystick control. It provides an open interface to the user's computer system.

The iIPSC-SINAX can carry up to 300 kg customized payload under dynamic motion (200 °/s² acceleration at 50 kg and 40 deg/s² at 130 kg payload [also dependent on moment of mass inertia]). Typical payloads are standard amd phased-array antennas or optical equipment.

The system can be controlled by the user's command system (via CAN, Ethernet or UART) or by the integrated joystick control System iJP.

iIPSC-SINAX datasheet: Single Axis Azimuth Stailizer for heavy Payloads

Video of iIPSC-MSG-60 installed on iMAR's hexapod test facilities (70 MByte)   (c) iMAR Navigation GmbH



Contact iMAR Sales Team for detailed information.
Detailed information and videos are provided in the download area.

More manuals, user reports and other information in our download area.
