iTraceRT: 30 years leadership in measuring automotive vehicle motion dynamics with unmatched accuracy
or: What are the reasons for iMAR's superior experience in hardware design and algorithms?
Systems for precise measuring of Vehicle Dynamics and Trajectory
iTraceRT is the ground truth reference for automotive testing worldwide, using INS, GNSS and optionally a wheel sensor. It provides position, velocity, attitude, heading, angular rate, acceleration and standard deviations for each measurement to support the automotive test engineer in the best way to perform his task. iTraceRT is a de-facto standard for automotive industry for more than 20 years now.
History
iTraceRT-F200 had been launched 2004 to the market and is a compact inertial/GPS coupled measurement system for land, marine and airborne applications. It provides all kinematic measurements as acceleration, angular rate and roll / pitch / yaw of the vehicle as well as position and velocity with a data rate up to 200 Hz using a so-called deeply-coupled data fusion. The series iTraceRT-F40x with 400 Hz data rate had been launched 2008.

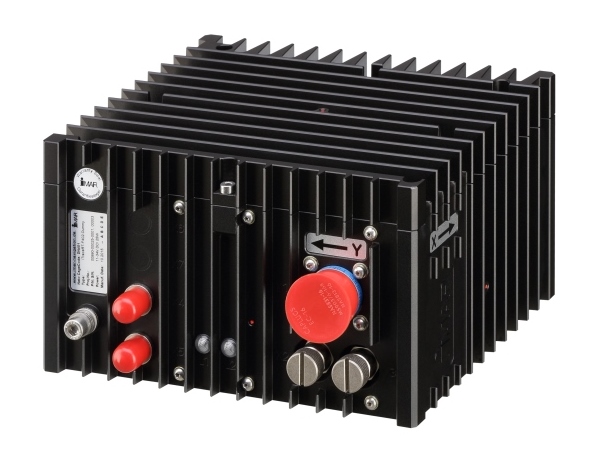

The iTraceRT-F402/7 is the successor of iTraceRT-F200 and iTraceRT-F400 and shows comparable functionality, but contains additionally an Ethernet interface and processes the data internally with 500 Hz. Furthermore the iTraceRT-F402/7 is additionally equipped with GLONASS and optionally GALILEO / BEIDOU; a second GNSS antenna can be connected on request, to provide a drift-free heading also during long standstill durations or immediately after power-on .
- Ultra prrecise INS/GNSS system for motion monitoringof vehicles (angle- and position reference for cameras, LIDAR, Sonar etc.) as well as for vehicle guidance applications and test of driver assistance systems (ADAS).
- robust, compact, light weight system for the real-world usage on the proving ground and in the public traffic.
- available with fiber optic gyro (FOG) and MEMS gyro technology.
- output of angular rates, attitude, true heading, acceleration, velocity, position (all 3D) via Ethernet, UART, CAN and USB in realtime.
- 2 cm position accuracy (CEP), under sufficient GNSS availability and dynamics with RTK L1/L2 aiding (correction data via iREF-GNSS or iNetGo; for iTraceRT-MVT also via iMAR's Dynamic Mesh Communication Network).
- optional Interface for ABD steering robot (iSRIF for iTraceRT-F402/7, fully integrated in iTraceRT-MVT series).
- Application Areas: Verification of advanced driver assistance systems (ADAS), guidance and control of highly automated vehicles on the proving ground and in industrial transportation systems, usage in accurate surveying applications, verification tool for automotive measurements regarding EuroNCAP AEB / Autonomous Emergency Braking.
- iTraceRT-MVT recommendation:
With our future oriented design of the new iTraceRT-MVT system family, which also takes into account the latest requirements of the testing of highly and fully automated vehicles (with even better performance-to-cost relation than the successor), we introduced 2016 to the first of our valued customers the iTraceRT-MVT system generation. The systems of type iTraceRT-F4xx will remain in service also in the future.
Today: iMAR is the de-facto Standard for most precise inertial Ground Truth and Vehicle Control

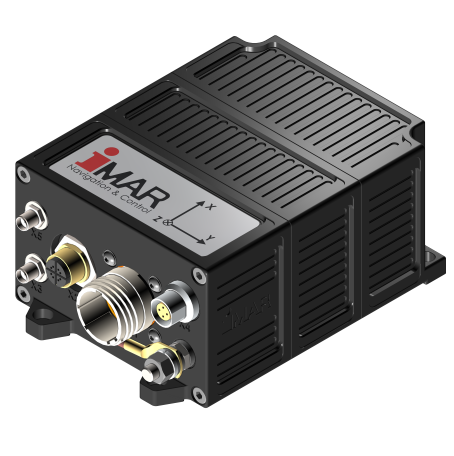

The series iTraceRT-MVT is equipped with sensors, interfaces, software and algorithms to meet the latest and future requirements for verification and control tasks on proving grounds up to SAE Level 5 (highest performance and reliability with extended interfaces at minimum latency and minimum jitter on output data). For instance, iMAR's Dynamic Mesh Communication Network (WLAN-compatible multi-point-to-point) is being supported; and for longer distances with strong GNSS degradation (e.g. in urban canyons or during longer tunnels) a very powerful and trend setting odometer aiding is integrated.
iTraceRT-MVT is based on iMAR's iNAT architecture (Navigation & Timing) with a specific application profile within the iXCOM-CMD software for automotive applications (incl. a powerful Wizard for easy plug&play operation) and a dedicated CAN interface.
Details for the proving ground applications are explained in the product flyer iSWACO-ARGUS.
Further Information:
Datasheet iTraceRT-MVT-300/TLD Multi-Vehicle-Tracking capable iTraceRT of latest generation (MEMS gyro based)
with minimum latency for guidance, control and surveying of vehicles on the proving ground and in the field (standard performance)
NEW in 01/2024: Datasheet iTraceRT-MVT-300/TLE-LN1 Multi-Vehicle-Tracking capable iTraceRT of latest generation (MEMS gyro based)
with minimum latency for guidance, control and surveying of vehicles on the proving ground and in the field - low noise (professional performance)
Datasheet iTraceRT-MVT-300/TLN-1 Multi-Vehicle-Tracking capable iTraceRT of latest generation (MEMS gyro based)
with minimum latency for guidance, control and surveying of vehicles on the proving ground and in the field (professional performance)
Datasheet iTraceRT-MVT-500 Multi-Vehicle-Tracking capable iTraceRT of latest generation (fiber optic gyro [FOG] based)
with minimum latency for guidance, control and surveying of vehicles on the proving ground and in the field
Datasheet iTraceRT-MVT-510 Multi-Vehicle-Tracking capable iTraceRT of latest generation (fiber optic gyro [FOG] based)
with minimum latency for guidance, control and surveying of vehicles on the proving ground and in the field
Capable to perform gyro-compassing (determination of true heading) even in standstil condition and without GNSS availability (e.g. within a car park)
Datasheet iTraceRT-MVT-60x Multi-Vehicle-Tracking capable iTraceRT of latest generation (ring laser gyro [RLG] based)
with minimum latency for guidance, control and surveying of vehicles on the proving ground and in the field
Capable to perform gyro-compassing (determination of true heading) even in standstil condition and without GNSS availability with highest performance (e.g. within a car park)
iTraceRT-MVT-600/T is the most accurate inertial Ground Truth for automotive applications.
Datasheet iSWACO-ARGUS - Proving Ground for testing up to SAE level 5
Legacy: Datasheet iTraceRT-F402/7 (for new projects iTraceRT-MVT is recommended)
Selection of Videos, which customers have produced and published about their applications, where iMAR's iTraceRT is involved for the task of automated or autonomous driving:
Video: Hochautmatisiertes Fahren mit iMAR's iTraceRT-F200 bei Daimler AG (2010) - Video ansehen
Video: Highly automated Driving -iSWACO-ARGUS (DEKRA / iMAR, 2022)
In the Download Area manuals and further information can be found.
