iIPSC-MSG-130: Gyro Stabilized Pan Tilt Gimballed Tracking Platform (EOTS)

Gyro Stabilized Electro Optical Tracking System for Multi Purpose Customized Payloads

Gyro Stabilized Electro Optical Tracking System for Multi Purpose Customized Payloads

The platform iIPSC-MSG-130 is fully two axes gyro stabilized including video tracking (iOET²) capability, true north alignment, joystick control and provides an open interface to the user's computer system.

The iIPSC-MSG-130 can carry up to 130 kg customized payload, like daylight and IR cameras, Laser range finder, RF antennas and other classified or unclassified equipment.

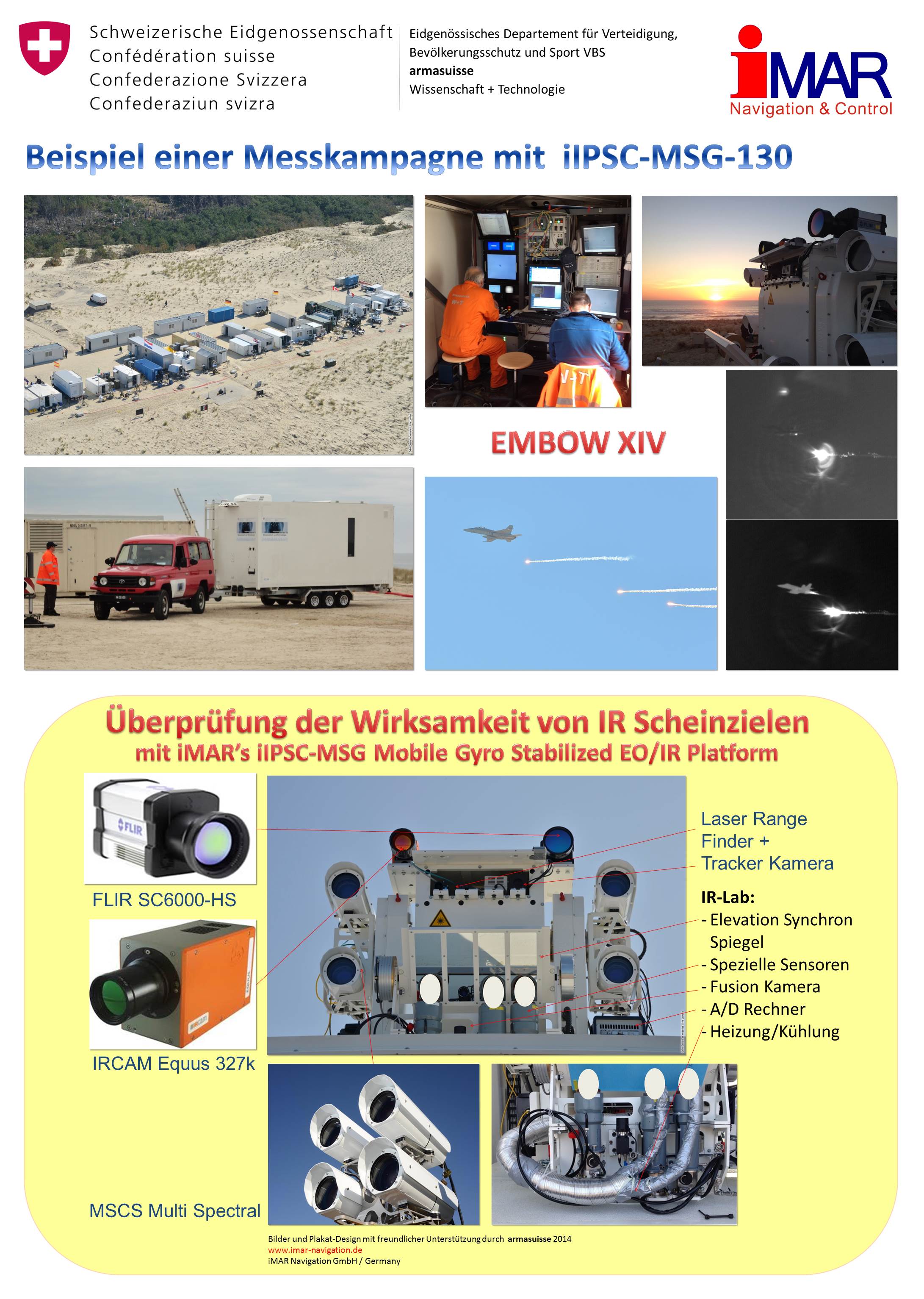

The tracking gimbal is integrated into an advanced container device (ACD) with vertical lift platform (see linked video) to support a mobile operation during national and international tracking campaigns. So the iIPSC-MSG-130 is the right successor of traditional or obsolete cine-theodolite systems, using latest motion and tracking technology, saving cost and weight.

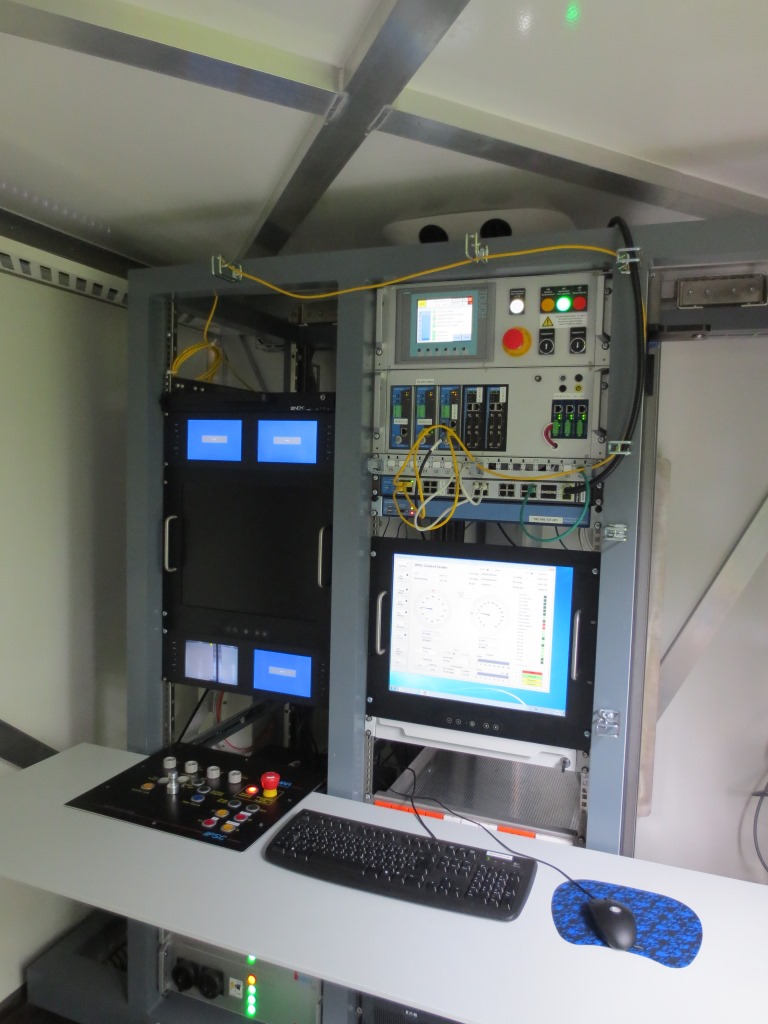

Beside of the target trackers of type iIPSC-MSG with iIPSC-Control a powerful software is provided to operate simultanously multiple iIPSC-MSG systems on a tracking range or in the field.

Contact iMAR Sales Team for detailed information.

Detailed information and real-world videos (UAV tracking, ammunition tracking, missile tracking) are provided below in the text and in the download area.

Thales, Wescam, SAFRAN, honeywell, diehl, gyro stabilized, GSS, gyro gimbal, tactical electronics, iXBLUE, EPE, epequip, penlink, STABLE AS, L3, 2020 Engineering, INVAP, Nettmann, obzerv, quanser, nedinsco, gyroflow, hensoldt, zeiss, esg, flexforce, soticol,

Further information

Datasheet: iIPSC-MSG-60 and iIPSC-MSG-130
Datasheet: iIPSC-MSG-30
Datasheet: iIPSC-PT-X

More manuals, user reports and other information in our download area.

Videos

iMAR's gyro stabilized target tracker iIPSC-MSG-60 for all kind of targets (aircraft, UAV, missiles, ammunition etc.), used also on many proving areas worldwide (c) iMAR Navigation GmbH
Video of iIPSC-MSG-60 for Aircraft and Missile Testing, equipped with IR camera (200 Hz), HighSpeed Camera (7200 pictures / second), laser range finder (up to 32 km distance, 0.25 mrad), daylight HDTV camera - gyro stabilized (78 MByte - 3 minutes) (c) iMAR Navigation GmbH
Video of tracking iIPSC-MSG-130 (58 MByte) (c) iMAR Navigation GmbH
