iMAR Navigation: iIPSC-HSG Gyro Stabilized EOTS Platform

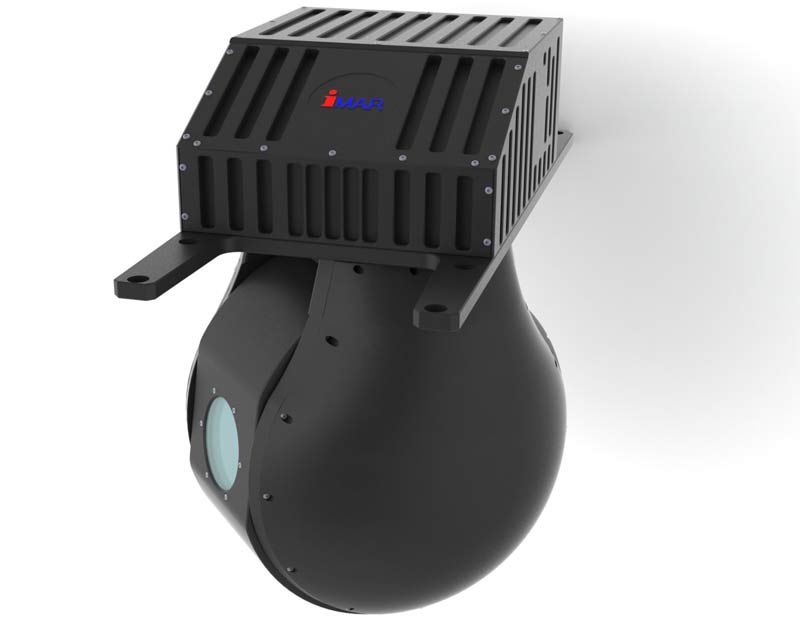

iIPSC-HSG: High Speed Gimbaled Camera Platform with Pan Tilt Gyro Stabilization

Two Axes Gyro Stabilized Gimbaled Pan Tilt Platform Series iIPSC-HSG for Very High Dynamic Applications

Direct drive brushless servo motors combined with direct drive high resolution encoders are ensuring the precise and smooth tracking of the iIPSC-HSG1. All axes are sealed. The selected materials are corrosion resistant and surface treated to withstand harsh land based, airborne or shipboard environmental conditions. The basic instrument can be adapted to specific applications by the addition of optional equipment or features. iMAR Navigation GmbH, located in Germany, is manufacturer and system integrator of the iIPSC-HSG and therefore also offers customized solutions.

Features:

  • Two-axes stabilized payload platform: azimuth and elevation axes for LOS (line-of-sight) control
  • Adaptable to different and multiple sensors due to customized mounting tray; balanced payload up to 10 kg or tbd
  • Direct torque drives for highest resolution, negligible hysteresis and superior dynamics (> 1’000 °/s²)
  • optical slipring as an option, gold plated sliprings standard
  • Upper electronic compartment in customer specific design / geometry
  • Available Control Devices: iSCU Stabilisation and Control Unit incl. iOET² Video Target Tracker, iJP Joystick Panel, INS/GPS control and blind pointing feature
  • Designed to operate in harsh environment on trucks, aircrafts and under naval conditions in head-up or overhead configuration

Options:

  • The inner payload platform can be replaced with a roll axis assembly enabling 3 DOF stabilization
  • iOET² Opto Electronic Target Tracking for Auto Tracking, (with multi target capability and fast 50 measurements / second)
  • Dynamic Inertial stabilization and geo-referencing with integrated INS/GPS positioning
  • Spring isolated base plate to filter high frequency disturbance from the instrument.

Further information:

Datasheet: iIPSC-HSG
Datasheet: iIPSC-MSG-40
Camera and LRF Selection Guide for  iIPSC Payload
