iNavionix: AHRS, Magnetometer and AirData Computer for UAS, UAV and small Aircraft
iNavionix: iNAT & iMAG & ADC-10 for UAS, UAV, OPV and small Aircrafts (advanced AHRS)
For navigation and control of unmanned aerial vehicles (UAV), unmanned aircraft systems (UAS), optional piloted vehicles (OPV) or general small aircraft (CS23, CS25) and helicopters, an Attitude Heading Reference System (AHRS), a Magnetometer and an Airdata Computer (ADC) are used to bridge GNSS outages. iMAR provides the full range of these components as a plug&play solution.
iNavionix is the reliable AHRS setup with INS/GNSS, Magnetometer and AirData system for Unmanned Aircraft Systems (UAS) and Unmanned Aerial Vehicles (UAV).
iNavionix is manufactured by iMAR Navigation. iMAR is certified to manufacture avionics systems and solutions according to EASA Part 21G since 2011.

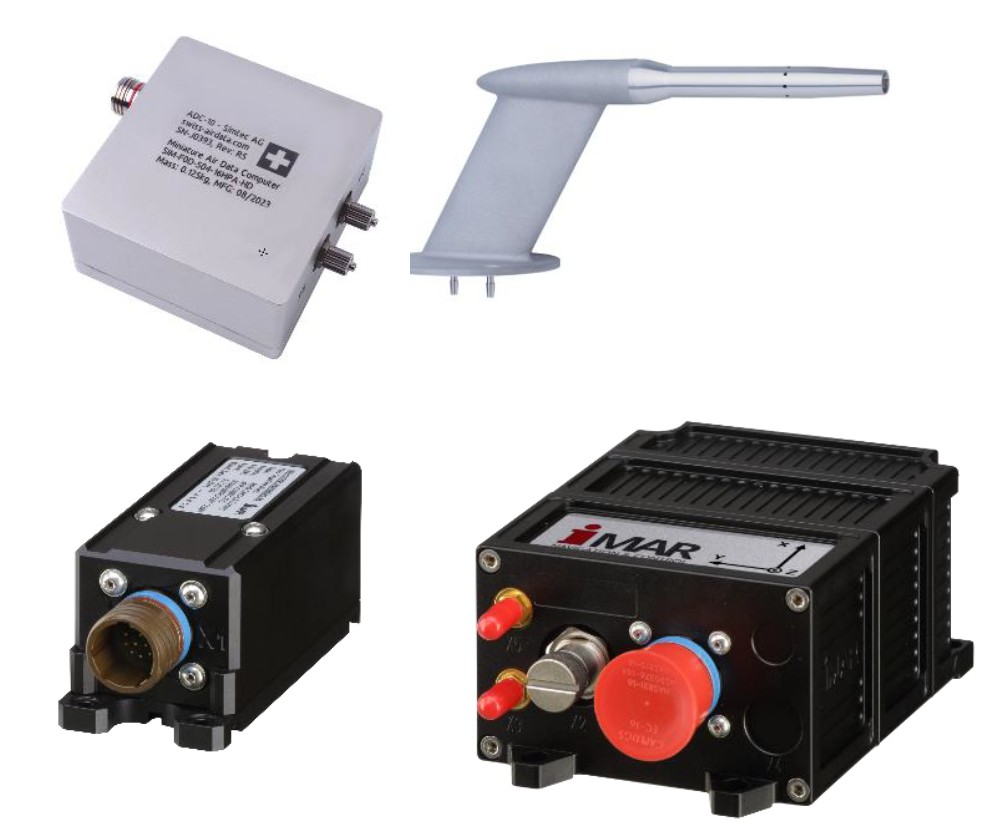

The iNavionix setup contains the following components:
- iNAT-M200 or iNAT-M300 or iNAT-FSLG or iNAT-RQT based INS/GNSS solution incl. inertial sensors (MEMS, FOG, RLG), GNSS engine, airborne electronics, sensor data fusion, 128 GByte flight data storage
- iMAG-DMC-A 3D-magnetometer

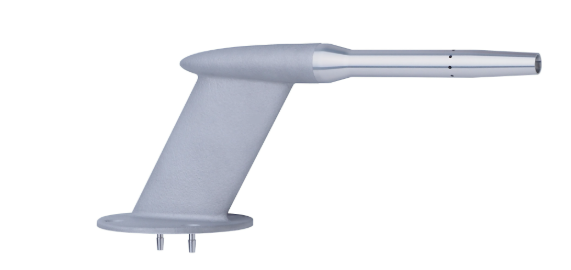

- ADC-10 airdata computer with optional pitot tube
iNavionx contains leading technology regarding inertial sensors, GNSS engine, magnetic sensing, air data computing, sensor data fusion and sensor calibration - Made in Germany.
Features
- iNAT-M300 / iNAT-U200 / iNAT-FSLG / iNAT-RQT: MEMS, FOG and RLG based AHRS and navigation solutions with integrated INS/GNSS and direct interfaces to magnetometer and airdata computer
- iMAG-DMC-A: 3D magnetometer
- ADC-10: Air Data Computer
- Sync Input / Trigger Output available
- 128 GByte data storage for flight data
- CANaerospace / ARINC825, UART (RS422 / RS232) and Ethernet TCP/IP / UDP interfaces available; NMEA183 supported
- Wide range supply voltage 10…33 V DC, full EMI/EMC protection for aviation applications
iMAR is certified according to EASA Part 21G manufacturer for avionics systems and solutions since 2011. The iMAG-DMC-A can be provided with FORM 1, all other components on request.
